Valves & Flanges
| TYPE | SIZE (RANGE) | MATERIAL STANDARD / GRADES |
|---|---|---|
| C.S - High temp/Low temp Stainless Steel | 1/4" - 36" 1/2" - 16" |
A105/A350 LF2/A694 F52 A182 F304/304L & 316/316L |
| Alloys/CS/SS-High Temp/Low temp | Upto-20" | Alloys steel - A182 F1, F2, F5 CS-Low temp-A350 LF3-Class-1&2 SS-A182 F321/F347 Duplex F51/F53 & (Ni-Ti Alloy) |
| Stainless Steel-Wrought-BW | Upto-16" | A403 GR-304/304L,316 /316L,321/321H & 904/904L. |
| Alloys/CS/SS/DSS/SDSS-High Temp/Low temp Alloys |
Upto-16" |
ASTM A234 WP1, WP5, WP9, WP11, WP22, WP91 ASTM A815 UNS 31803/ UNS 32750/32760 |

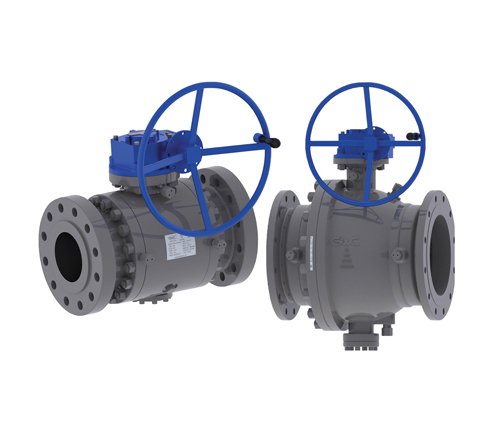

FORGED & CAST TRUNNION BALL VALVES :
- Size Range: 2" - 48"
- Pressure Class: ASME 150 - 2500
- API: 2000 - 5000
- API Standards: 6D & 6A ASME B16.34
- Features:• Three-Piece Body Forged • Two-Piece Body Cast • Full and Reduced Bore • Trunnion Mounted • Double Block and Bleed • Anti-Blowout Stem • Anti-Static Device • Fire Safe to API-607/6FA • Spring Loaded Seats • Sealant Injection • NACE MR-01-75

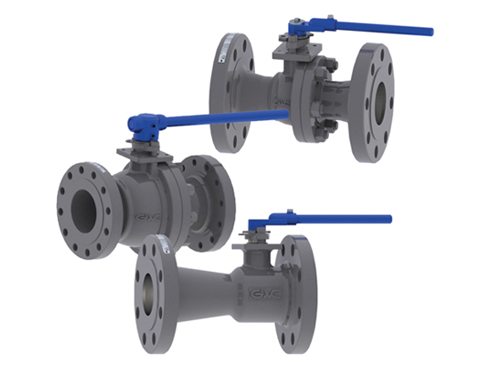

FLANGED FLOATING BALL VALVES :
API and ASME/ANSI Standards. BS and DIN are also available on request.
- Size Range: 2" - 48"
- Pressure Class: ASME 150 - 2500
- API: 2000 - 5000
- API Standards: 6D & 6A ASME B16.34
- Features:• Three-Piece Body Forged • Two-Piece Body Cast • Full and Reduced Bore • Trunnion Mounted • Double Block and Bleed • Anti-Blowout Stem • Anti-Static Device • Fire Safe to API-607/6FA • Spring Loaded Seats • Sealant Injection • NACE MR-01-75

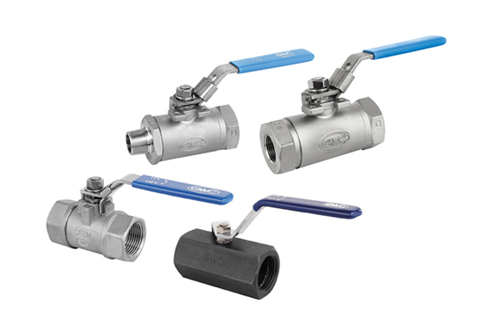

THREADED & SOCKETWELD BALL VALVES :
- Size Range: 1/4" - 3"
- Pressure Class: ASME 800 - 1500
- API: 2000 - 5000
- Pressure Range: :800# - 6000 WOG

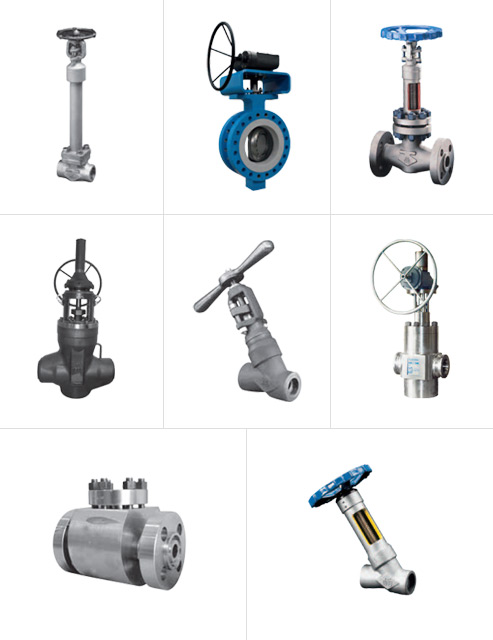

C - 18 FORGED STEEL VALVES :
High Pressure & Temperature
Catalog C-YV2 introduces OMB range of valves for the power and energy industries. Y pattern globe valves up to 4500 class. Welded bonnet and Pressure Seal construction gate, globe and check valves. Parallel Slide Gate valves for steam service. The catalog include information on temperature-pressure rating of all alloyed materials used for high temperature services
API6A - ISO10423
Gates, Ball valves, Globe valves and Piston and Swing check valves from class 3000 upward.
Cryogenic Valves
Catalog C-CR2 present the Forged steel Gate, Globe and Check valves .
Bellows Seal Valves
Catalog C-BS2 present the Forged & Cast steel range of Bellows Sealed Gate, Straight pattern Globe and “Y” pattern Globe valves. Valves are offered in pressure class from 150 to 2500, with bellows in 321, Alloy 625, Hastelloy® C276. Includes Cast steel valves in accordance to API600 from 2” to 16”.

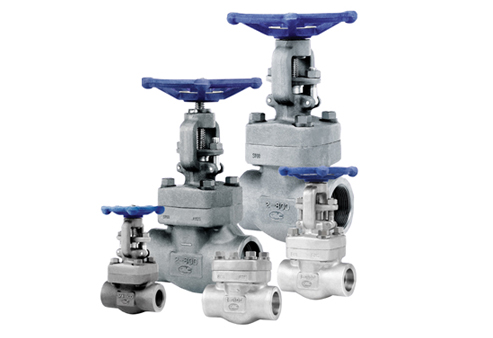

FORGED STEEL GATE, GLOBE & CHECK VALVES :
- Size Range: 1/4" - 3"
- Pressure Class: ASME 150 - 2500
- API: 602 ASME: B16.34
- Features:• FNPT, SW, Flanged RF, RTJ BW Ends • Welded in Seat Rings • Low Emission Packing • Single Piece Stem Design • Solid Wedge

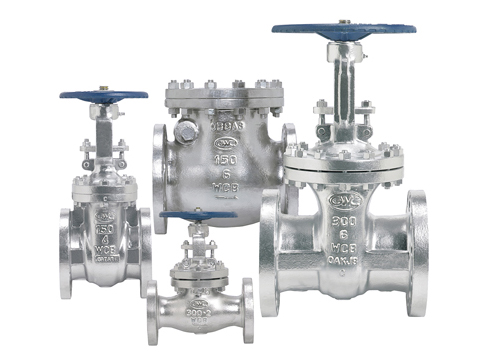

CAST STEEL GATE, GLOBE AND CHECK VALVES:
- Size Range: 2" - 60"
- Pressure Class: ASME 150 - 1500
- Pressure Range: 600 - 603 ASME: B16.36
- Features:• Flanged RF, RTJ, BW Ends • Welded in Seat Rings • Low Emissions Packing • Single Piece Stem Design • Solid & Flexible Wedge
TRIPLE OFFSET BUTTERFLY VALVES :
- Size Range: 2" - 30"
- Pressure Class: ASME 150 - 6000
- Design Standards: API 609/ ASME B16.34
- Features:• Triple Eccentric Disc-Shaft • Anti-Blow Out Stem • Bi-Directional • Firesafe Design • Low Friction Body Seat • Zero Leakage • Wafer, Lug & Flange Type

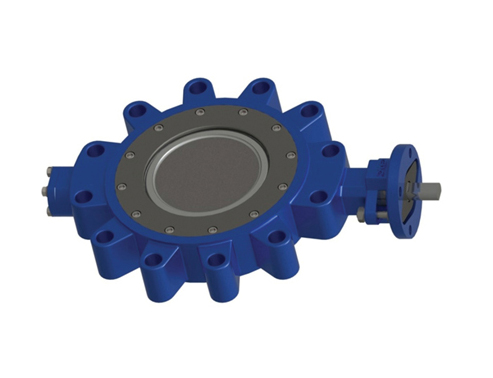

HIGH PERFORMANCE BUTTERFLY VALVES :
- Size Range: 2" - 60"
- Pressure Class: ASME 125 - 600
- Design Standards: API 609/ ASME B16.34
- Features:• Double Eccentric Disc-Shaft • Anti-Blow Out Stem • Bi-Directional • Firesafe Design Available • Low Friction Body Seat • Zero Leakage with Soft Seat • Wafer, Lug & Flange Type
RESILIENT SEATED BUTTERFLY VALVE :
- Size Range: 2" - 48
- Pressure Class: ASME 125 - 150
- Design Standards: API 609
- Features:• Single Eccentric Disc-Shaft • Anti-Blow Out Stem • Bi-Directional • Firesafe Design • Low Friction Body Seat • Zero Leakage
